3-polig XLR-hona • Svart metallhus och silverkontakterThe next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. TECHNICAL DATA Product • Connector: Type XLR • Gender: female Electrical •…

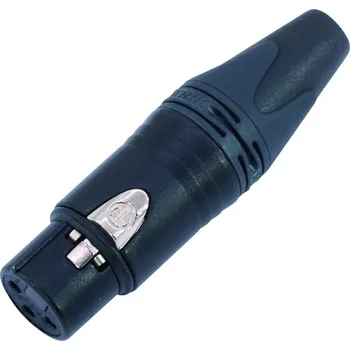

Informace o Neutrik XLR NC-3FXX-BAG, zásuvka 3 pólová
Popis
3-polig XLR-hona • Svart metallhus och silverkontakterThe next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief. TECHNICAL DATA Product • Connector: Type XLR • Gender: female Electrical • Capacitance between contacts: ≤ 4 pF • Contact resistance: ≤ 3 mΩ • Dielectric strength: 1,5 kVdc • Insulation resistance: > 2 GΩ (initial) • Insulation resistance: > 1 GΩ (after damp heat test) • Rated current per contact: 16 A • Rated voltage: 50 V Mechanical • Cable O. D. : 3.5 - 8.0 mm • Insertion force: ≤ 20 N • Withdrawal force: ≤ 20 N • Lifetime: > 1000 mating cycles • Wire size: max. 2.5 mm2 • Wire size: max.
